Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

002470288

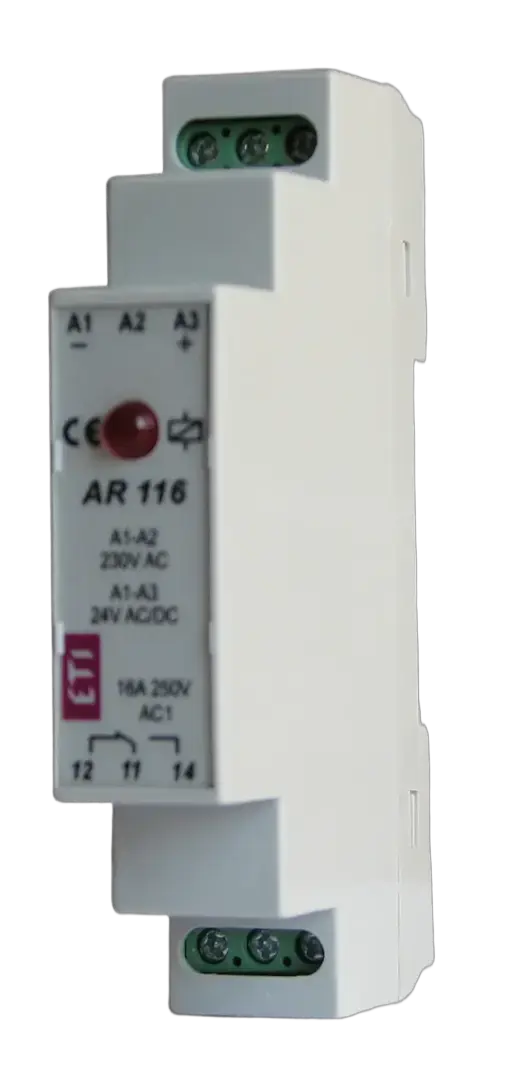

Image of AR116

AR116 Power relay

ETI Code:: 002470288
Function:: Monitoring and Control relays
Supply Voltage:: 230 V
Type of Control:: Alarm and control
Voltage type:: AC
Application:: Służy do przełączania sygnałów i obwodów elektrycznych, zwiększania liczby styków sterujących
Maximum load capacity at AC1:: 4,000 VA
IP rating:: IP20
Rated current:: 16 A
No. of NC contacts:: 3
No. of CO contacts:: 3
No. of NO contacts:: 3

Product

Net weight of the product: 0.07 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895615149
Basic packaging weight: 0.07 kg
Basic packaging volume: 0.12 dm³

Transport Packaging

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895615156
Transport packaging weight: 0.7 kg
Transport packaging volume: 1.4 dm³
Pallet quantity: 11,430 pcs
Customs tariff: 85364900

Degree of protection (IP): IP20
Voltage type for actuating: AC/DC
Depth: 65 mm
Type of electric connection: Clip connection
Number of contacts as change-over contact: 1
Rated control supply voltage DC(Min): 24 V
Rated control supply voltage AC 50 Hz(Min): 230 V
Rated control supply voltage AC 50 Hz(Max): 230 V
Rated control supply voltage DC(Max): 24 V

ETIM Classification – Version 9.0
